- for checking and adjusting the engine timing
suitable for the following models:
- Opel Corsa B/C / Combo / Tigra / Agila /Tigra B / Meriva / Astra F/G/H / Astravan / Speedster VX220 / Zafira A/B / Vectra B/C / Signum / Omega B / Sintra / Frontera A/B / Astravan / Kadett / Ascona / Omega / Monterey / Antara / Croma / Speedster VX220
- Chevrolet & Daewoo Epica / Captiva / Nubira / Lacetti / Evanda
- Saab 9-3 / 9-5 (98-04)
- Alfa 145 / 146 / 147 / 156 / 159 / 166
- GT / Crosswagon Q4
- Fiat Punto / Grande Punto / Bravo / Brava / Marea Weekend / Stilo / Doblò/Cargo / Multipla Idea / Panda
- Lancia Ypsilon / Musa / Lybra / Thesis
- Suzuki Ignis / Swift / Wagon R+
- Ford Ka
engines:
- 1.0 12V / 1.0 16V / 1.2 16V / 1.4 /1.6 / 1.2-1.4 16V (chain) / 2.0 / 2.0 Turbo / 2.2 DI / 2.0-2.2 16V / 1.6 16V / 1.8 16V / 2.0 16V / 2.2 16V / 1.3 JTD MultiJet / 1.3 CDTI / 1.3 TDCI / 1.6 MultiJet / 1.9 JTD / 1.9 MultiJet / 2.4 JTD / 1.9 CDTI / 2.0 MultiJet /1.5 D / 1.5 TD / 1.7 D / 1.7 TD / 1.6-1.7 D / 3.0 TD / 3.1TD / 2.0-2.2-2.4 TD / 2.0-2.2 DI / 2.0 TDCI / 2.0 D VCDI / 2.2 16V (DOHC)
- engine codes:
X14XE / Z14XE / X16SEJ / X16XE / X16XEL / Y16XE / Z16XE /
Z16YNG / C18XEL / X18XE / X18XE1 / Z18XE / Z18XEL / C20SEL / C20XE /
X20XEV / Z20LEH / Z20LEL / Z20LER / Z20LET / X22SE / X22XE / Y22SE /
Y22XE / Z22XE / D223L /X10XE / Z10XE / Z10XEP / X12XE / Z12XE / Z14XEP /
X20DTL / X20DTH / X22DTH / Y20DTL / Y20DTH / Y22DTH / Y22DTR /
169A1.000 / 955A4.000 / 350A3.000 / 192B4.000 / 198A2.000 / 350A2.000 /
955A3.000 / 192A8.000 / 198A6.000 / 198A3.000 / 199B1.000 / 199B2.000 /
199A2.000 / 199A3.000 / 199A9.000 / 940A3.000 / 188A3.000 / 939A2.000 /
188B2.000 / 188A8.000 / 188A9.000 / 323.02 / 371.01 / 937A2.000 /
182B4.000 / 182B9.000 / 188A2.000 / 188A7.000 / 192A9.000 / 186A6.000 /
186A8.000 / 192A1.000 / 192A3.000 / 192B1.000 / 192A5.000 / 186A9.000 /
939A1.000 / 199A5.000 / 223A7.000 / 223A9.000 / 342.02 / 362.02 /
841G.000 / 841H.000 / 841P.000 / 939A3.000 / 185A2.000 / 185A6.000 /
Z13DT / Z13DTJ / Z13DTH / Z19DT / Z19DTH / Z19DTJ / Z19DTL /
X10XE / Z10XE / Z10XEP / Z12XE / Z14XEP / X16SZR / Z16SE / 4EC1/T / 4EC1 / 4EE1/T / 4EE1 / X17DT / Y17DT / Y17DTi / Y17DTL / 16DA / 17D /
17DR/X / 7DTL / X17DTL / 4JX1/4 / JG2T /4FC1/T / 4FD1 / X20DTL /
Y20DTL / D223L Z20DMH / Z20DM / RA420 / Z20S1 /194A1.000 / Z22SE / Z22YH

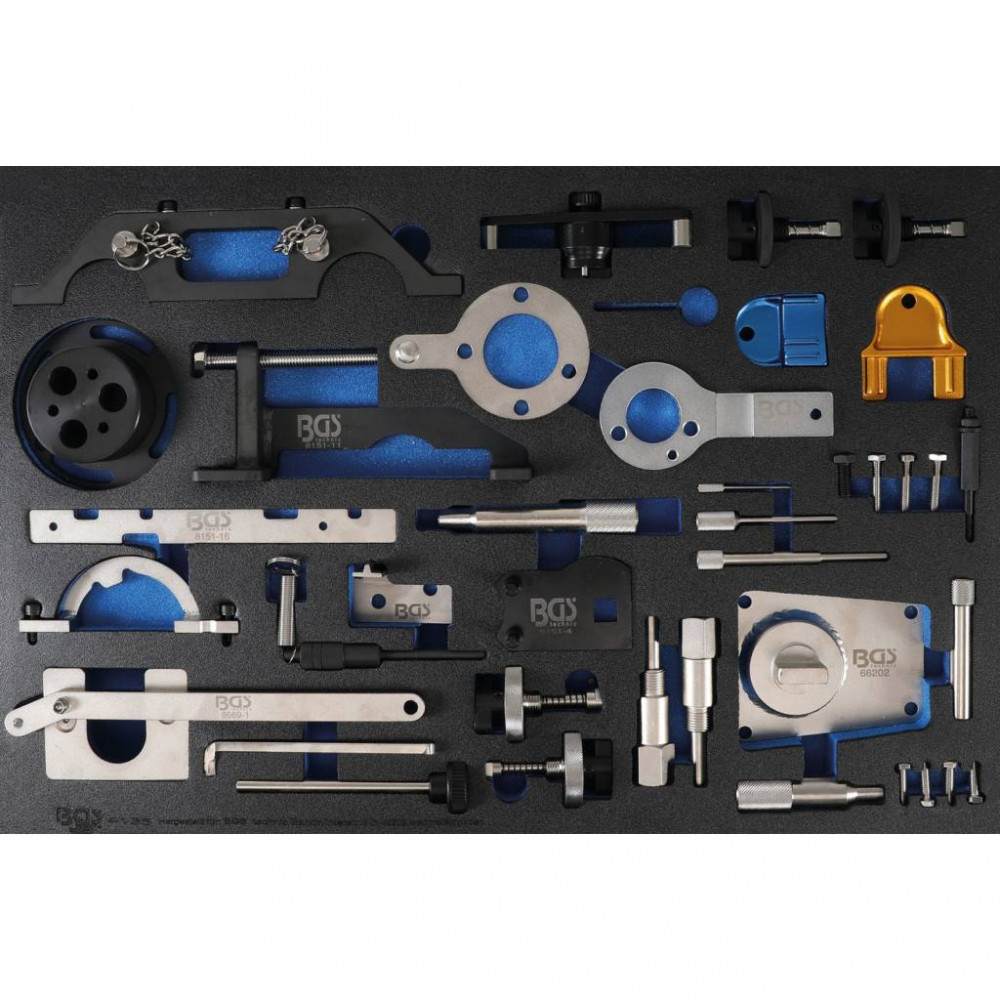

scope of delivery:
- adjusting wrench, to be used as OEM KM-933
- injection pump locking pin, to be used as OEM KM-927
- flywheel & crankshaft locking tools, to be used as OEM KM-929 / KM-952 / EN-46785 / KM-951 / 1860905000 / 1860905010 / EN-46788 / KM-911 / EN-46785 / 1860703000 / EN-48246 / 1870900300 / 303-1468
- tensioner tools, to be used as OEM KM-955 / KM-6130 / KM-6349 / KM-6349 / 1870900400 / 1871000200
