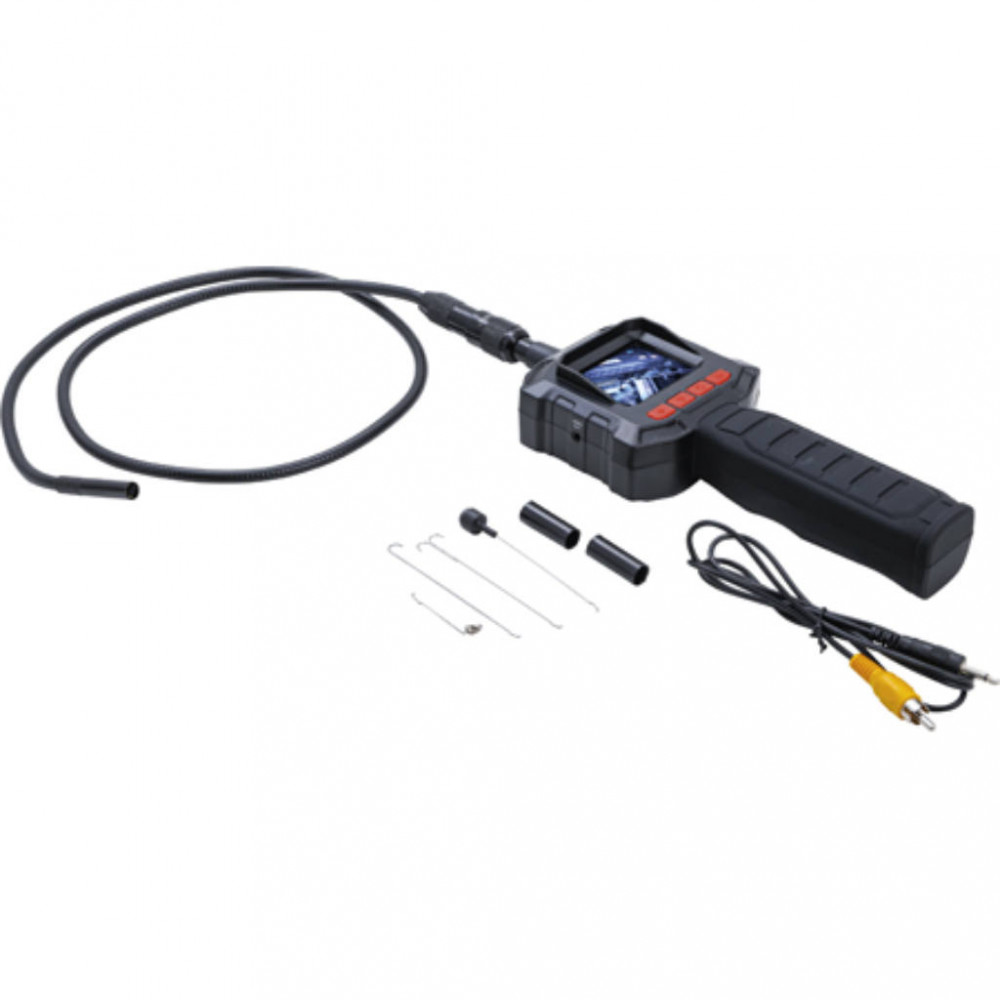

BGS DIY Endoskopická videokamera s TFT monitorom | Hlava kamery Ø 8 mm (BGS 63216)

• Podrobnosti
• Údaje

Podrobnosti

• for the inspection of hard-to-reach places in vehicles, at home and other areas
• also suitable for detecting and lifting falling down screws, nuts, etc. using accessories provided
• adjustable lighting in camera head
• screen size: TFT LCD 84 mm (3.31 inch)
• contrast: 300
• brightness: 220 cd/m²
• power supply: 4x AA battery 1.5v
• work time: max. 6 hours
• consumption current: 238 mA
• video output impedance: 75 ohm
• video signal level: 0.9 - 1.3 Vp-p
• imaging sensor: CMOS 2.82 mm (1/9 inch)
• effective pixel: 640 x 480
• video system: PAL / NTSC
• horizontal viewing angle: 48 degrees
• waterproof capacity: IP67 (lens and tube only)
• tube length: 980 mm
• camera diameter: 8 mm
• dimensions of handle: 257 x 92 x 44 mm (excl. tube)
• operating temperature: -10 °C - 50 °C (14 °f - 122 °f)
• relative humidity: 15 - 85%
• weight: approx. 407 g (incl. batteries)

scope of delivery:

• 1 handle with LCD monitor
• 1 flexible tube
• 1 hook
• 1 double hook
• 1 magnet
• 1 mirror
• 2 fixing rings
• 1 video cable
• 4 AA batteries 1.5 volts

Údaje

Hmotnosť:

1 kg/kus
